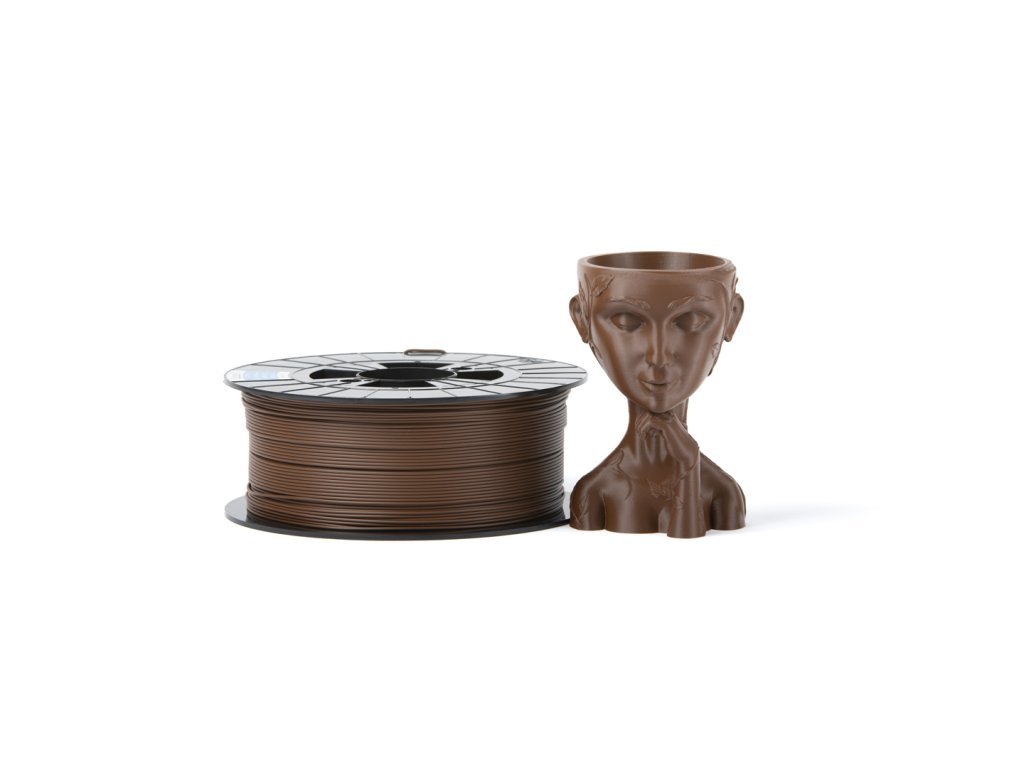

PLA + Skin 477 C 1,75 mm 1 kg Filament PM

Kód: PLAP175PM1S477C
Neohodnotené
Značka: Filament-PM
€27,51 / ks €22,93 bez DPH €27,51 / 1 kg
Skladom (2 ks)
Môžeme doručiť do:
4.4.2024

Vylepšená varianta PLA - ľahká tlač, lepšia súdržnosť vrstiev, viac húževnaté, Plasty Mladeč, odtieň PANTONE 478 C, 1000 gramov.

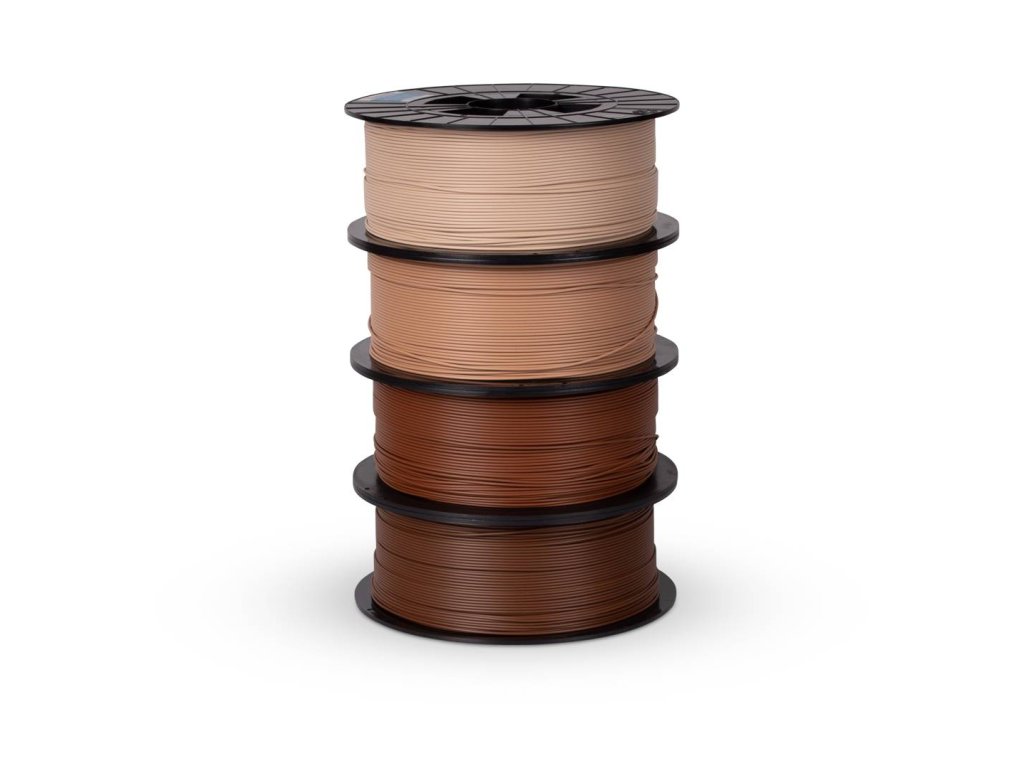

Pale Skin tone - svetlý odtieň. Edícia telových farieb - Skin Edícia (4 odtiene). Perfektná voľba vďaka matnému vzhľadu.

Detailné informácie

Doprava zadarmo nad 200 Euro

Radi vám poradia naši špecialisti

Veľa informácií na naše blogu alebo v materiálovom slovníku

Podrobný popis

Tlačové struny českej značky Filament PM, ktorá spadá pod firmu Plasty Mladeč, patrí medzi kvalitné materiály a zaručujú bezproblémovú tlač. Pri výrobe je použité laserové meranie hrúbky materiálu, čím je zabezpečený konštantný priemer struny po celej jej dĺžke. Tieto struny sú chránené dvojitým obalom proti pôsobeniu UV žiarenia av každom balení je prítomné vysúšacie vrecko, ktoré zabraňuje prípadnému pôsobeniu vlhkosti na materiál. Tlačové struny sú vyrábané v širokej palete farieb.

PLA biela tlačová struna je univerzálnym materiálom pre technológiu tlače FDM, vhodným aj pre tlač veľkých predmetov. Je najpoužívanejším materiálom pre 3D tlač bez nutnosti vyhrievať tlačovú podložku.

Vhodnosť použitia PLA:

PLA filament sa ľahko sa tlačí, je biologicky odbúrateľné (teda aj šetrné k životnému prostrediu). Ide však o materiál, ktorý nie je vhodný na vonkajšie použitie, degraduje a krehne pokiaľ je vystavený UV žiareniu. Nie je tiež teplotne odolný. Už pri 30 – 50 °C výtlačky mäknú a deformujú sa. Preto nie je vhodné výtlačky voziť v automobiloch. PLA je horľavý materiál. Preto odporúčame nenechávať tlačiareň pri tlači s týmto materiálom dlhodobo bez dozoru.

Povrchová úprava PLA - materiál nie je možné ľahko obrúsiť, brúsením (trením) vzniká teplo, ktoré spôsobuje "ťahanie" vlákien z výtlačku. Preto je vhodné pri ručnom brúsení výtlačok chladiť napr. tým, že ho budete brúsiť pod vodou. Z rovnakého dôvodu sa ťažko do výtlačku vŕtajú diery (opäť problém so zahriatím). Materiál je vhodné nastriekať najskôr plničom (používaný v modelárine) a následne obrúsiť, opäť prestriekať a stále dookola až je model pre nás dokonale hladký a potom ho prestriekať farbou. Výsledný model je tiež možné vložiť do "omielačky" spolu so škrupinkami, kameňmi, zvyškami filamentov kúskami výtlačkov...

Lepenie PLA: sekundové lepidlo s aktivátorom v spreji (niekedy postačí aj samotné sekundové lepidlo)

Odporúčané nastavenie tlače PLA: Pre tlač stačí použitie bežne používaných trysiek. Priemer trysky volíme podľa jemnosti povrchu akú chceme dosiahnuť  resp podľa nastavenia sily vrstiev pri tlači. Na toto optimálne nastavenie existuje prepočtový vzorec, nič menej stačí jednoduché pravidlo +-0,2mm – tzn keď chceme hrúbku vrstvy 1,25 nemala by mať tryska väčší priemer ako 0,3mm. Pri väčších vrstvách používame trysku s väčším priemerom pri slabších naopak s menším.

Teplota podložky - nie je nutný výhrev alebo len pre lepšiu priľnavosť materiálu k podložke do 50 °C.

Odporúčané nastavenie: Teplota tlače: 190-210 ° C, retrakcia 0,8 mm, rýchlosť 60 mm / s (outline 70%), vrstva 0,2 mm - 0,05 mm. Pri použití tlačiarne s PEI fóliou je nutné podložku dobre odmastiť. Výsledný výtlačok je hladký, mierne lesklý bez viditeľných chýb.

Pre skladovanie odporúčame zabezpečiť suché prostredie. Pri zlom skladovaní vo vlhkom prostredí pohlcuje vlhkosť, čo sa prejavuje pri tlači ako bublinky na povrchu.

Vonkajší priemer cievky 202 mm, vnútorný otvor 50 mm, šírka 90 mm. Hmotnosť cievky vrátane obalu 1,4 kg. Tlačová struna je navinutá na čiernej cievke, v igelitovom vákuovom obale, kartónovej krabici a ešte jednom igelitovom obale.

Množstvo vlákna PLA filamentu na 1kg cievke je cca 330 metrov. Hodnota je približná pretože aj priemer struny môže kolísať podľa tolerancie uvádzanej výrobcom. U Plastov Mladeč je to +- 0,05mm.



Priemer

1,75 mm

Tolerancia

0,05 mm

Hmotnosť

1 kg

Hmotnosť prázdnej cievky

0,216 kg

Hmotnosť balenia

1,38 kg

Tryska

190 - 210 °C

Vyhrev. podložka

60 °C

Pantone

479 C

RAL

8002



ENG

Improved PLA  - even easier printable, better layer cohesion and thougher.

Filament from the Czech brand Filament PM which falls under the Plasty Mladeč company belongs to quality materials providing trouble-free printing. They use laser measurement of the thickness of the material during the production, which ensures a constant diameter of the filament among its entire length. This filament is protected by a double cover against the UV radiation and there is a drying bag in each package, which protects material from possible moisture effects. Filaments are produced in a wide range of colors.

PLA white filament is an universal material for 3D FDM printing technology suitable for printing large objects. It is the most comonly used material for 3D printers without the need to use heated bed.

When and how to use PLA material:

PLA is easily printable and it is biodegradable (therefor environmentally friendly). However it is not a material which is suitable to be used outdoors, because in such case it degrades and brittle under the UV light. Also it is not heat resistant. Even at temperatures 30 - 50 °C the material softens and deforms. For that reason it is not recommended to drive with such outprints in the car. PLA is flammable material. Due to that fact it is recommended not to leave the printer unattended (for longer periods of time) while printing with this material.

PLA surface treatment  - this material is not easily sanded, while grinding (friction) it generates heat and that causes the fibers to “pull” from the print. Therefore, when sanding by hand, it is recommended to cool the printout, for example by sanding under water. For the same reason it is also difficult to drill holes in the printout (again, a heating problem). It is suitable to spray the material with a filler first (filler used in modeling) and then sand it and repaint it, and again, and again - until the material is absolutely smooth and at the end spray it with the paint. The resulting model can be also inserted into the “saucepan” along with the shells, stones, remnants of filaments and pieces of prints...

PLA and glue: instant glue with spray activator (sometimes instant glue alone can be sufficient)

Recommended setting for PLA material: Commonly used nozzles are suitable. Diameters can be chosen according to the fineness of the surface which we want to achieve or according to the setting of the layer thickness during printing. You can use a simple conversion formula for this optimal setting. Rule is +- 0.2 mm is enough - ie if we want a layer thickness of 1.25, the nozzle diameter should not be greater than 0.3 mm. If there is a larger layer, use a larger diameter of the nozzle, for weaker ones, use a smaller one.

Heated bed temperature - warming is not required but if you want to achieve even better adhesion of the material, warm the heated bed up to 50 °C.

Setting: Print temperature: 210 °C, retraccion 0,8mm, speed 60mm/s (outline 70%), layer 0,2mm - 0,05mm. When using the printer with PEI foil, it is necessary to degrease the pad well. The resulting print is smooth, slightly glossy and without visible errors.

For storage it is highly recommended ot use dry environment. When stored poorly and in a humid environment, it absorbs moisture which results as bubbles on the surface when printed.

Coil outer diameter 202 mm, inner hole 50 mm, width 90 mm. Spool weight including packaging 1.4 kg. The printing string is wound on a black spool, in a plastic vacuum package, a cardboard box and another plastic package.

The amount of PLA filament per 1 kg spool is about 330 meters. The value is approximate as the diameter of the string can vary according to the tolerance specified by the manufacturer. In this specific case (Plasty Mladeč) it is +- 0,05 mm.





























Dodatočné parametre

Kategória: Tlačové struny - filamenty
Hmotnosť: 1.5 kg
Priemer struny: 1,75 mm
Farba: biela, telový Skin
Hmotnosť bez obalu: 1 kg
Tolerancia/priemer: +/- 0,05 mm
Podložka: 0-60°C
Pracovná teplota: 190 - 210°C

Buďte prvý, kto napíše príspevok k tejto položke.

Nevypĺňajte toto pole:

Tlačové struny  - filamenty PM sa vyrábajú v stredisku Plasty Mladeč Zemědělského družstva Haňovice od roku 2013. Tlačové struny sú kvalitné a veľmi obľúbené u majiteľov Reprap tlačiarní, najmä materiál PLA.

Výrobca sa neustále zdokonaľuje v technologii výroby, ale aj vo vyhovení potrieb zákazníkov. Teraz vyrába struny v dvoch základných priemeroch a to 1,75 mm a 2,9 mm. Samozrejmosťou je široká ponuka farieb a kontrola akosti strún.

Ak máte záujem o tlačiarenskú strunu od výrobcu Mladeč a nevyhovuje Vám farba, kontaktujte nás. Aj také požiadavky vieme riešiť.
